GY-906 MLX90614红外测温传感器模块温度采器(i2c总线)

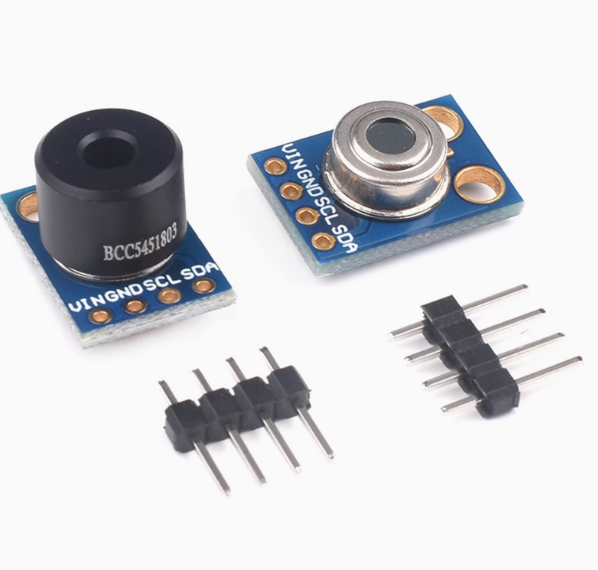

GY-906 MLX90614红外测温传感器

mqtt:
  broker: 192.168.0.30
  port: 1883
  username: ykdbc
  password: Xy@528848
  discovery: true
  reboot_timeout: 0s
i2c:                                    #定义i2c总线
    sda: GPIO12                          #D6
    scl: GPIO14                         #D5
    scan: True                          #ic总线激活端口(可以激活后扫描不同的地址,接线方式可以多设备同端口并联也可以多设备不同端口串联)
sensor:
  - platform: mlx90614
    object:
      name: 探测物体温度
    address: 0x5A
    update_interval: 5s
  - platform: mlx90614
    ambient:
      name: 环境采样温度
    address: 0x5A
    update_interval: 5s
